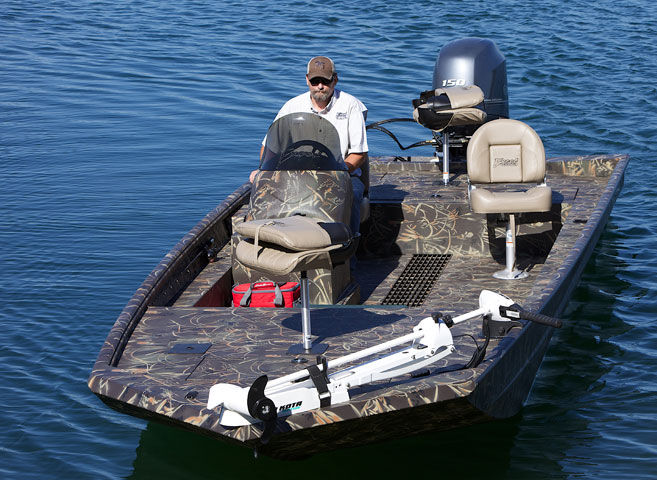

Catfish Pro - Side and Center Console
The Catfish Pro is designed for big fish, big water and bigtime fishermen. The Viper™ hull turns flat and tight with the versatility to take on the “Big Muddy” or slip into shallow coves only inches deep. The Catfish Pro is tournament ready with a spacious 66 gallon livewell, 30 gallon fuel tank and comfortable bucket seats. The Catfish Pro’s features are ideal for big water duck hunting and any situation needing a big boat for big water.
Specs
-
Length 21' 24'
-
Bottom 72" 72"
-
Side Height 26" 26"
-
Transom Height 20" & 25" 20" & 25"
-
Beam 94" 94"
-
Capacity 6/810 6/810
-
Fuel Gallon 30 30
-
Livewell Gallon 66 66
-
Max Horsepower 175 225
-
Hull Thickness 0.125 0.125
-
Weight Passengers and Gear 1700 1900
Features
•Khaki or OD Green •.125 All-welded Viper™ hull •Welded-in Aluminum Floor and Decks •All Aluminum Transom •Exrtruded Gunwale (w/rubber rub rail and slotted interior for accessory mounting) •66 Gallon Livewell •Driving Leaning Post (center console model) •2-18” Deluxe Bucket Seats (side console model) •12/24 Volt Trolling Motor Harness •Navigation Lights •Bilge - 800GPH •30 Gallon Fuel Tank •1- Tempress Seat with Pole •1 Rear Deck Seatbase •Rear Deck Battery Storage •High Front Deck with Side Steps •3 Front Deck Seat Bases •Front Deck Storage •Fiberglass Console w/Tinted Windshield, Speedometer, Tach and Fuel •Console 16 Gallon Aerated Livewell •Front Bow Control Panel w/12V Plug, Troll Motor Plug and Anchor/Nav Lights Switch •Center Console Model has Six Rod Holders, Fold Down Windshield Grab Bar, 3 Tray Tackle Center, Cushion Seat and Backrest on 16 Galllon Livewell, Front Door with Storage, Two Cup Holders and Flat Fish Finder Mounting Surface
Options
•Dual Side Consoles •Livewell in Optional Portside Console •Portside Rod Box - not Available with Dual Console Option •Camo (OPTIFADE Marsh, OPTIFADE Timber, Max-4, Natural Gear & Old School) •Gloss paint (White, Silver, Blue, Red, Black & Burgundy) •Two-Tone Paint Scheme (specify when ordering) •Interior Superliner •Twin 5800 Lumen Headlights •Leaning Post Backrest w/3 Rod Holders (center console model) •40 Quart Orca™ Cooler Under Stand Alone Leaning Post •Interior LED lighting (white, red, blue & green choice) •Auto Bilge •Dual Livewell Pumps (rear livewell) •Spud Poles •BayStar and SeaStar Hydraulic Steering •CMC and Atlas Hydraulic Jack Plate •6” Jack Plate •2-Bank & 3-Bank Charger •Full Line of Minnkota Troll Motors •Recirculating Livewell and Bait Well •6 Gauge Trolling Motor Harness w/Battery Tray (12, 24 and 36 volt options) (standard on 24' Catfish) •Humminbird Helix 5 or Helix 7 Fishfinder/GPS •Tan Interior with Outside Camo •Yamaha, Mercury, Suzuki, Evinrude or Honda Outboard
Videos
CatFish Pro
Ride along in my catfish boat: Finding Way Point 16
Excel Catfish Pro Series
Excel Boats
Images
Catfish Pro Reverse Chine Hull
Steve Douglas (Catfishde - Wild Catter's TV
The Catfish Pro viper style hull with reverse chine gets on step quickly, rides smoothly and turns like it is on rails
Super Large Livewell
When we say our Excel boats have all the right features - in all the right places, we mean it. This livewell is big - large enough for any fish we catch.
Water Resistant Boxes
All our water resistant storage boxes have a raised edge on top of the box that fits into the cover. This feature prevents normal rainfall and water splashes from getting into the sealed box below. However, be careful at carwashes where high pressure spray can seep up and over the water resistant seal.
This feature is a premium standard feature on all Excel brand boats.
LED Headlight Option
These 5800 Lumen twin LED tough headlights will show you the way through open marshes of the midwest or the timber of Arkansas. The lights can be adjusted upwards/downwards as needed, and the base swivels around for backing the boat up or any direction you want to put out your decoys out. Shock absorbing hold downs help protect the light assembly when going through brush and timber.
The headlight is operated on/off from the drivers panel accessory switch shown above.
